The ITS 6520 providing clear, uncompressed video for
image/data analysis
The

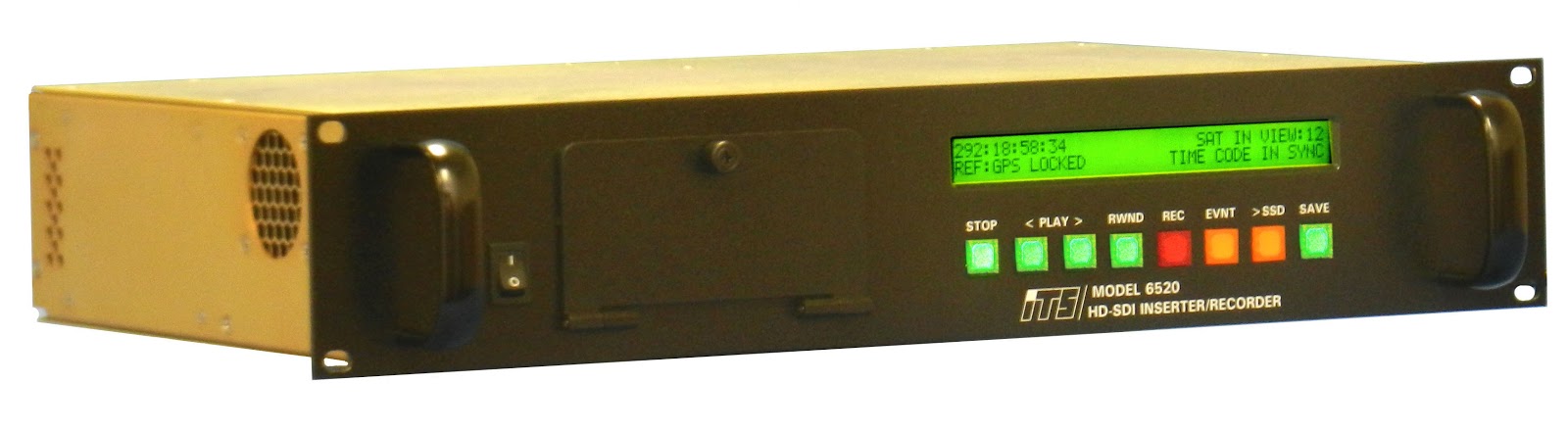

ITS 6520 is a video insertion and recording tool that can deliver what you need
with one small footprint device to fly. The 6520 is rugged, meets flight safety
requirements, and fits in an 8”x 11” x 3.5” (20 x 27.9 x 8.9 cm) space and is
less than 6 pounds (2.7kg). It only needs a connection to an SDI video source
(coax) and aircraft power (18-36 VDC).
The
recorder has a built-in 12-channel GPS receiver that the 6520 uses to
accurately report date, time, latitude and longitude on each video frame.
Lat/Long and altitude is reported to accuracy of 5 meters of your vehicle
location. This information can be placed anywhere on the video frame in one of
8 colours.
The
6520 also offers other data that may be collected and overlaid on the video
frame or embedded in the VANC metadata space of the video for later use and
extraction.
While
inserting this information, the 6520 can record uncompressed imagery
continuously to a removable SSD. Recording lengths vary by video format but can
be 90 minutes using a commonly available 1080i/60 SDI video source.
Storage
space can be allocated very efficiently employing the 6520’s event record
function. This function can capture up to a 90 second 1080i/60 clip where the
clip surrounds the event trigger. The event trigger is a discrete or command
signal. The amount of pre-event video is programmable from 1 frame to the
entire loop less one frame (one frame post event). The recorder will
automatically complete capturing the pre-event and post-event video and save
the clip to SSD.
